QUICK-START GUIDE

miniSMU App quick-start guide

Connect your device, configure measurements, and perform essential solar cell measurements

Note: The miniSMU MS01 can be powered by a USB port alone, with no additional external power source. However, in this mode, the SMU current is limited to 50 mA. It is recommended to use the included 12 V power adaptor to unlock the SMU's full 180 mA current rating.

Back to Software

Installing the miniSMU Application

PC Requirements

Windows 10 or newer, macOS 12 (Monterey) or newer on Apple Silicon, or a Debian-based Linux distro (Ubuntu 20.04+, amd64, beta)
Intel Core i3 6100 / Apple M1 / equivalent or newer CPU
4GB RAM or greater
At least 200MB of disk storage
Network connection for miniSMU networking capability

Installation Process

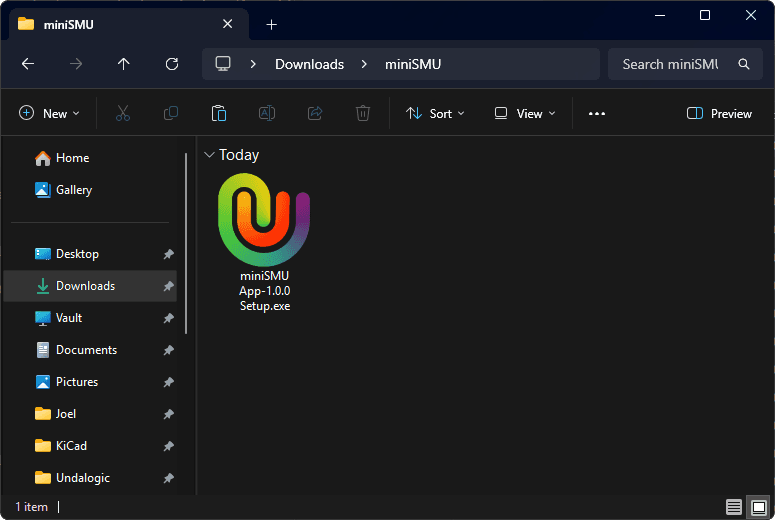

Double-click on the miniSMU App setup executable

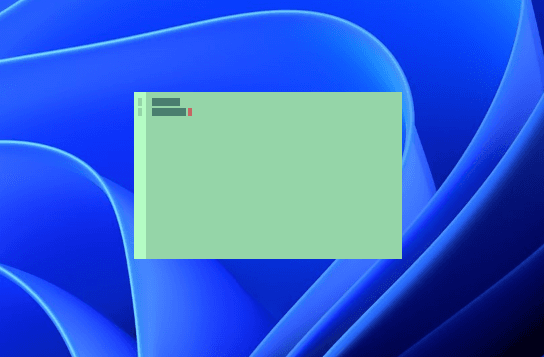

Installation will begin automatically, indicated by an animated green box. The application will be installed to your User/AppData/Local folder.

Once the installation is complete, the miniSMU application will launch automatically
